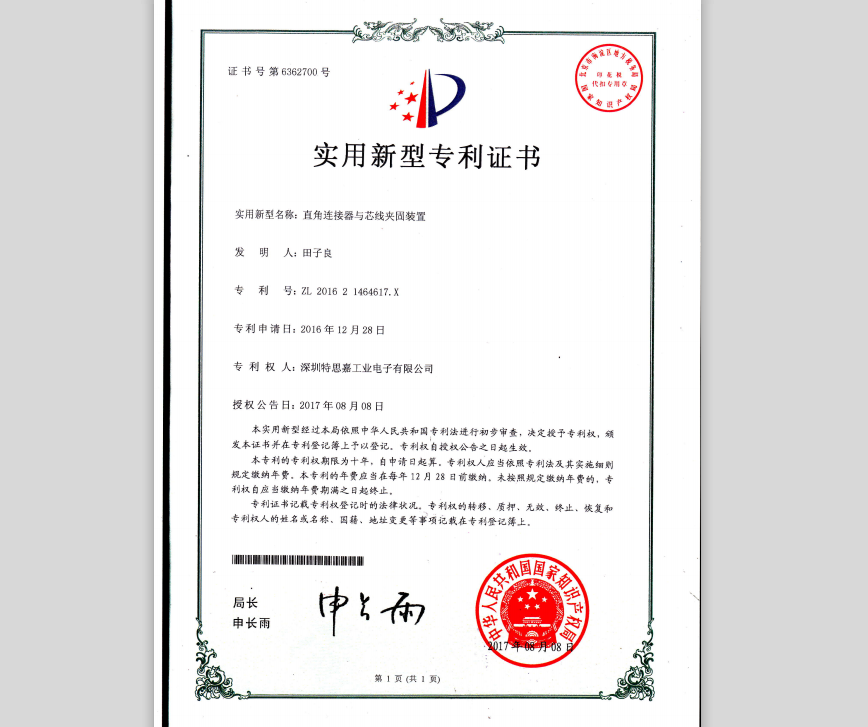

Right-angle connector and core wire clamping device [utility model]

TXGA connector in "right Angle connector and core wire clamping device" patent.

Inventor: tian ziliang.

The patent number is ZL 2016 2 1464617.x

Patent application date: December 28, 2016

Patentee: shenzhen tesja industrial electronics co., LTD

Authorization announcement date: August 8, 2017

Abstract: The utility model discloses a right Angle connector and wire clamp fixation device, solves the conductor and the connecting tube assembly errors, need to separate the connection tube and the core, and the connection of the tube is difficult to reset after extrusion deformation, need to dismantle connection tube damage type, lead to problems in terms of connecting tube scrap, its technical scheme including plug wire tube are the main points, including in the jaw of the thrust line inside the tube, plug suitable for plug wire barrel and screw driver jaw moving rod, fixed on the screw rod in order to realize the limit screw rod axial sliding block, set in jaw jaw along the screw rod axial movement of the guide bar, achieve the to spiral grain drive clip wire clamping, The positive and negative rotation of the screw realizes the clamping or loosening drive of the clamp, which facilitates the removal of the core wire and reduces the scrap rate of the connector.

Principal right requirements: a solid conductor of the clamp device, including the plug wire tube, whose character is: including in the jaw of the thrust line inside the tube, plug suitable for plug wire barrel and screw driver jaw moving rod, fixed on the screw rod in order to realize the limit axial sliding block, set of screw rod in clamping piece and guiding clip along the screw rod axial movement of the guide bar.
