A removable mobile phone holder [utility model] | TXGA patent

TXGA connector inc. received a patent for a removable cell phone mount.

Inventor: tian ziliang.

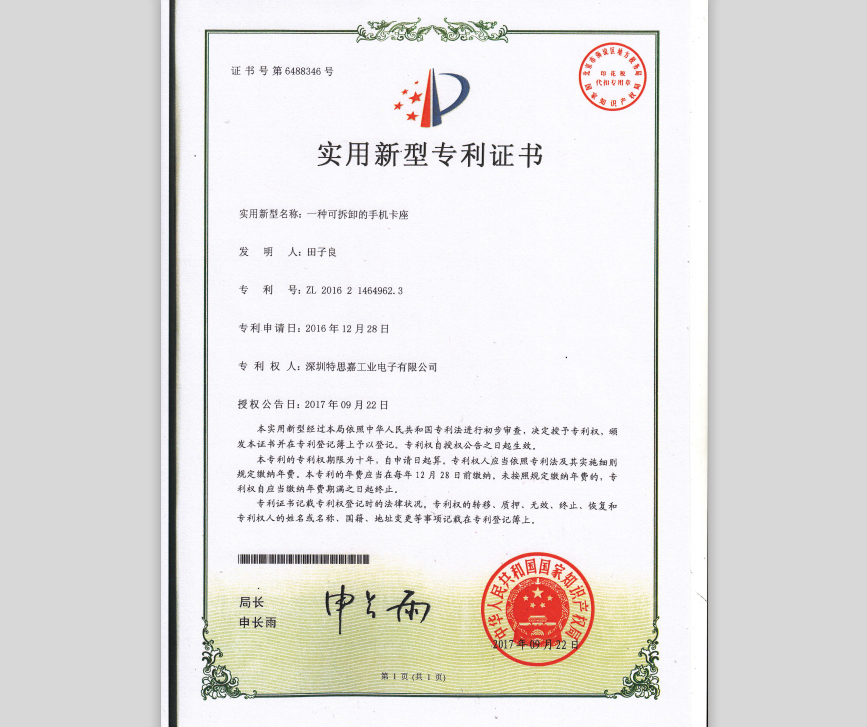

Patent no. : ZL 2016 2 1464962.3

Patent application date: December 28, 2016

Patentee: shenzhen tesja industrial electronics co., LTD

Authorization announcement date: September 22, 2017

Abstract: the utility model discloses a detachable phone booth, aimed at resolving the phone booth is hard to remove the cover and pan, card or unstable when need to replace the whole mobile phone booth, of the cost of the waste, the technical scheme including the pan and cover are the main points, pan and cover detachable connection, pan end is equipped with the axis of rotation, the cover has grown to wear with the rotation of the axis of rotation hole and guide axis to the axis of rotation or from the sump channel; One end of the relative rotating shaft of the bottom shell is connected with the upper cover card. The utility model is characterized by inserting the rotary axis of the upper cover into the channel and moving along the channel into the rotary hole, and the installation of the upper cover and the bottom shell is completed by rotating the upper cover; When replacement is needed, rotate the top cover to make the rotation axis slide from the rotary hole into the channel, and slide out of the channel to realize the separation of the top cover and bottom shell; The operation is simple and fast. When the upper cover and the bottom cover are loose and cannot be fixed properly, the customer can replace the SIM card by himself, saving cost. Improved user experience.

Main claim: a removable mobile phone holder, including the bottom shell and the top cover, its features are: the bottom shell and the top cover can be detachable connection, the bottom shell one end is provided with a rotating shaft, the top cover is provided with a rotating hole with a rotating shaft and a channel to guide the rotating shaft into the rotating shaft or out of the bottom shell; One end of the relative rotating shaft of the bottom shell is connected with the upper cover card.
