Where you are： TXGA Products M8 Circular Connector F001M8-SA04SRD1-00
F001M8-SA04SRD1-00
Download page
After clicking download, select "Save as PDF" in the printer options.

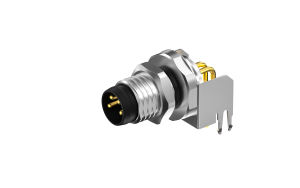

Front fastened M8X1.0 Male Socket , A-Coded , 4Circuits , Pin , 90° Vertical , Through Hole, with shield
Iteration new product: FM8ST0402-A04P104D00
Product Number：
F001M8-SA04SRD1-00
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Shielded
Number of Positions
4Circuits
Contacts Type
pin
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M8x1.0
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
Tray
