Where you are： TXGA Products M8 Circular Connector F001M8-SA07SSD0-00
F001M8-SA07SSD0-00
Download page

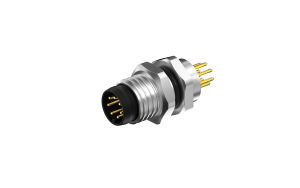

Front fastened M8X1.0 Male Socket , A-Coded , 7Circuits , 180° Vertical , Through Hole, without shield
Iteration new product: FM8ST0409-A07P104D00
Product Number：
F001M8-SA07SSD0-00
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
7Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M8x1.0
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Prompt
This product has been assigned a new number

To avoid misuse of the old number, this page no longer supports ordering/inquiry. Please visit the new product detail page to get the latest product information.

New product number FM8ST0409-A07P104D00
Go to new products
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F001M8-SA07SSD0-00
Front fastened M8X1.0 Male Socket , A-Coded , 7Circuits , 180° Vertical , Through Hole, without shield
MPQ： 200
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
