Where you are： TXGA Products M8 Circular Connector F002M8-SB05PRD1-00
F002M8-SB05PRD1-00
Download page
After clicking download, select "Save as PDF" in the printer options.

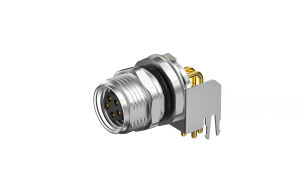

Front fastened M10X0.75 female Socket , B-Coded , 5Pin , 90° angle , Through Hole, with shield
Iteration new product: FM8ST0504-B05S104D00
Product Number：
F002M8-SB05PRD1-00
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Female
Coding
B coding
Shielded
Shielded
Number of Positions
5Circuits
Contacts Type
socket
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M10x0.75
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
