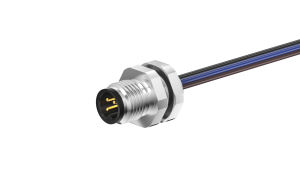

F003M5-SA03PSW0-01 M5X0.5 Rear fastened M5X0.5 male socket, A Coded 3pin, with lize L=200mm, free end

F003M5-SA03PSW0-01

Download page

M5X0.5 Rear fastened M5X0.5 male socket, A Coded 3pin, with lize L=200mm, free end

Iteration new product: FM5WR0101-A03S104020000

Product Number：

F003M5-SA03PSW0-01

Status：

Discontinued

Product Introduction Data Download Product Compliance

Category

Product Catalog

Connectors

Product System

M5 Circular Connector

Style

Cable assembly

Gender

Male

Coding

A coding

Shielded

Non-shielded

Number of Positions

3Circuits

Contacts Type

Colour

Black

Cable Length(mm)

L=200mm

Electrical

Current(Max)

Voltage(Max)

60V

Contact Resistance

3 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Panel Mount Feature

Rear nut

Mounting Thread

M5x0.5

Durability (Mating Cycles Max.)

100

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

PE Bag

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
