F00BNC-J75S0BHD-01
Download page

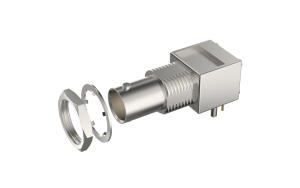

BNC, Jack, 75Ω, socket, Right angle(90°), Through hole
Product Number:
F00BNC-J75S0BHD-01
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
BNC
Features
Standard
Style
Socket
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Right angle(90°)
Colour
White
Electrical
Voltage(Max)
500V
Contact Resistance
1.5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Impedance
75Ω
Frequency Range (Max.)
4 GHz
VSWR
1.5 Max
Mechanical
Fastening Method
Nut
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
POM
Flammability Rating
UL94 V-0
Packaging
Packaging
Tray
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$0.610838
20+
$0.524786
500+
$0.509735
1000+
$0.483927
5000+
$0.424893
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 50
MOQ: 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
