Where you are： TXGA Products Printed Circuit Connector F0J80C-P01 F0J80C-P128SD070-01
F0J80C-P128SD070-01
Download page
After clicking download, select "Save as PDF" in the printer options.

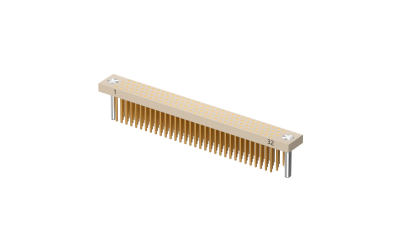

J80C, Male, 128Circuits, Vertical(180°), Through hole, L=10mm
Product Number：
F0J80C-P128SD070-01
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
J80C
Style
Plug
Pitch
2mm
Row Option
4 rows
Number of Positions
128Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
PPS
Flammability Rating
UL94 V-0
 Packaging
Packaging
Box
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
J80C
Style
Plug
Pitch
2mm
Row Option
4 rows
Number of Positions
128Circuits
Orientation
Vertical(180°)
Colour
Natural

Electrical

Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC

Mechanical

Mounting Style
Through hole

Material

Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.5μm
Material-Resin
PPS
Flammability Rating
UL94 V-0

Packaging

Packaging
Box

Data Download

Product Drawings
3D Drawings
Product Specifications
EN_Spec J80C.pdf English Version

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F0J80C-P128SD070-01
J80C, Male, 128Circuits, Vertical(180°), Through hole, L=10mm
MPQ： 1
MOQ： 1

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
