Where you are： TXGA → Products → Printed Circuit Connector → F0JL24-S → F0JL24-S06RD000-01

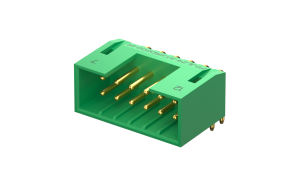

F0JL24-S06RD000-01
Download page
JL24, Socket, 6Circuits, 90°Angle, Through Hole
Product Number：
F0JL24-S06RD000-01
Status：
Active
Product Introduction Data Download Compatible Parts
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL24
Style
Socket
Pitch
2mm
Row Option
Dual row
Number of Positions
6Circuits
Orientation
Right angle(90°)
Colour
Green
 Electrical
Current(Max)
1A
Voltage(Max)
300V
Contact Resistance
12.5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
{{item.nameEn}}
{{file.fileName}}
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$4.322357
10+
$4.088940
50+
$3.622105
100+
$3.388688
500+
$2.921854
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 1
MOQ： 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time： In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
