Where you are： TXGA Products RF Connector F0MCRF-J50S0S0S-02

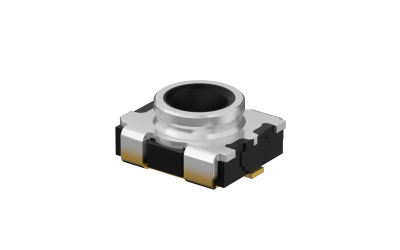

F0MCRF-J50S0S0S-02
Download page
RF Switch connector, Jack, 50Ω, socket, Vertical(180°), Gold plating, SMT, Gen 6
Product Number：
F0MCRF-J50S0S0S-02
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
MCRF
Style
Socket
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Vertical(180°)
Colour
Black
 Electrical
Voltage(Max)
30V
Contact Resistance
100 mΩ Max
Insulation Resistance
300 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Impedance
50Ω
Frequency Range (Max.)
11 GHz
VSWR
1.5 Max
 Mechanical
Panel Mount Feature
N/A
Mounting Style
SMT
 Material
Material-Contact
Stainless steel
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{2.274488 | tradeCurrencySymbol}}
1000+
{{1.253496 | tradeCurrencySymbol}}
5000+
{{0.720255 | tradeCurrencySymbol}}
15000+
{{0.348755 | tradeCurrencySymbol}}
300000+
{{0.333592 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 15000
MOQ： 15000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
F0MCRF-J50S0S0S-02
RF Switch connector, Jack, 50Ω, socket, Vertical(180°), Gold plating, SMT, Gen 6
