Where you are： TXGA Products Contact Connector F0WSCT-00601060-01
F0WSCT-00601060-01
Download page
After clicking download, select "Save as PDF" in the printer options.

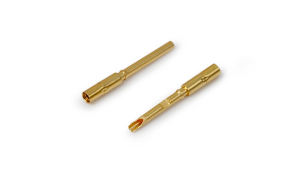

Wire spring socket, ∅0.6, Gold plated, 0.25μm
Product Number：
F0WSCT-00601060-01
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Contact Connector
Product Category
Wire spring socket
Number of Positions
1Circuit
Diameter (mm)
∅0.6
Orientation
Vertical(180°)
 Electrical
Current(Max)
1.5A
Contact Resistance
10 mΩ Max
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
Soldering
 Material
Material-Contact
Beryllium copper
Plating
Gold plated
Plating Thickness
0.25μm
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Contact Connector
Product Category
Wire spring socket
Number of Positions
1Circuit
Diameter (mm)
∅0.6
Orientation
Vertical(180°)

Electrical

Current(Max)
1.5A
Contact Resistance
10 mΩ Max
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Mounting Style
Soldering

Material

Material-Contact
Beryllium copper
Plating
Gold plated
Plating Thickness
0.25μm

Packaging

Packaging
PE Bag

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
