Where you are： TXGA Products Printed Circuit Connector FXJL27-S-S F2JL27-S05SD000-01
F2JL27-S05SD000-01
Download page
After clicking download, select "Save as PDF" in the printer options.

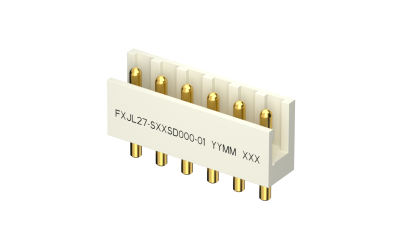

JL27, Socket, 5Circuits, 180°Vertical, Through Hole
Product Number：
F2JL27-S05SD000-01
Status：
Active
Product Introduction Data Download Compatible Parts
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL27
Style
Socket
Pitch
3.96mm
Row Option
Single row
Number of Positions
5Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
13A
Voltage(Max)
250V
Contact Resistance
3.8 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
