F2JL27-S07SD000-01
Download page
JL27, Socket, 7Circuits, 180°Vertical, Through Hole
Product Number:
F2JL27-S07SD000-01
Status:
Active
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL27
Style
Socket
Pitch
3.96mm
Row Option
Single row
Number of Positions
7Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
13A
Voltage(Max)
250V
Contact Resistance
3.8 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mechanical
Mounting Style
Through hole
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Packaging
Tube
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

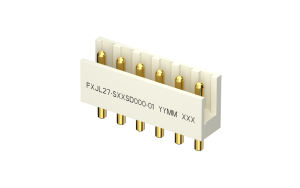

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
