Where you are： TXGA Products Printed Circuit Connector FXJL35-S F3JL35-S12SD000-01

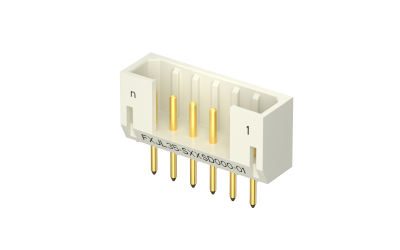

F3JL35-S12SD000-01
Download page
JL35, Socket, 12Circuits, Vertical(180°), Through hole
Product Number：
F3JL35-S12SD000-01
Status：
Active
Product Introduction Data Download Compatible Parts
Category
Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL35
Style
Socket
Pitch
2.54mm
Row Option
Single row
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
3A
Voltage(Max)
300V
Contact Resistance
10 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
