FAPFAP03-06P101WS00
Download page

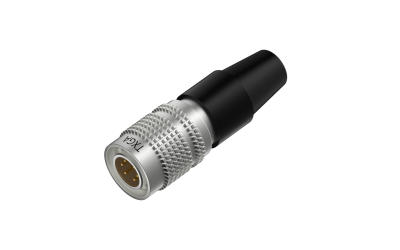

Push pull male plug, shielded, soldering, 6 cores
Product Number:
FAPFAP03-06P101WS00
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
APF Circular Connector
Features
Standard
Style
Plug
Gender
Male
Shielded
Shielded
Number of Positions
6Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
2A
Voltage(Max)
140V
Contact Resistance
10 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
300V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Waterproof / Dustproof
No
Fastening Method
No
Mounting Style
Soldering
Durability (Mating Cycles Max.)
500
Material
Surface Treatment
Plating
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
Packaging
PE Bag
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$3.550855
10+
$3.251549
50+
$2.829800
100+
$2.652938
200+
$2.312818
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 200
MOQ: 200

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
