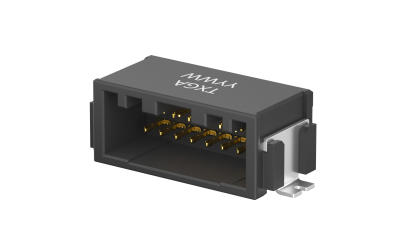

FAS20003-D16B7013BKM
Download page
Male Socket 2mm, Dual row, 16Circuits, Right angle(90°), SMT
Product Number:
FAS20003-D16B7013BKM
Status:
Active
{{item.nameEn}}
Category
Product Catalog
Connectors
Product System
EWB Connector
Style
Socket
Gender
Male
Pitch
2mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
3A
Voltage(Max)
50V
Contact Resistance
30 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+125ºC
Mechanical
Mounting Style
SMT
Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$1.658851
10+
$1.595253
50+
$1.563454
100+
$1.531655
500+
$1.499856
stock 60 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 390
MOQ: 2340

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
