Where you are： TXGA Products Board to Board Connector FBB04010-F100S1023BKMH39

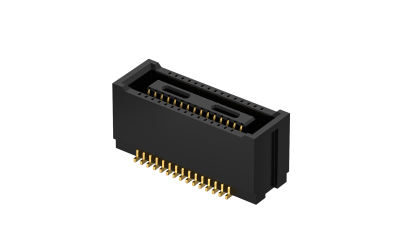

FBB04010-F100S1023BKMH39
Download page
After clicking download, select "Save as PDF" in the printer options.
Board to Board Connector, 0.4mm, Female, 100Circuits, Vertical(180°), SMT, , H3.9,
Iteration new product:
Product Number：
FBB04010-F100S1023BKMH39
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.4mm
Row Option
Dual row
Number of Positions
100Circuits
Height(mm)
H3.9
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
20Gbps
 Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.05μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.4mm
Row Option
Dual row
Number of Positions
100Circuits
Height(mm)
H3.9
Orientation
Vertical(180°)
Colour
Black

Electrical

Current(Max)
0.3A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
20Gbps

Mechanical

Mounting Style
SMT
Durability (Mating Cycles Max.)
30

Material

Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.05μm
Material-Resin
LCP
Flammability Rating
UL94 V-0

Packaging

Packaging
Reel

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Prompt
This product has been assigned a new number

To avoid misuse of the old number, this page no longer supports ordering/inquiry. Please visit the new product detail page to get the latest product information.

New product number
Go to new products
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FBB04010-F100S1023BKMH39
Board to Board Connector, 0.4mm, Female, 100Circuits, Vertical(180°), SMT, , H3.9,
MPQ： 2000
MOQ： 2000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
