Where you are： TXGA Products Board to Board Connector FBB05001-F FBB05001-F12S1013W5M

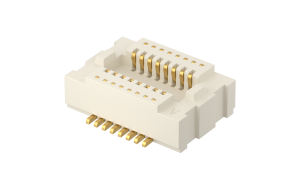

FBB05001-F12S1013W5M
Download page
After clicking download, select "Save as PDF" in the printer options.
Board to Board Connector, 0.5mm, Female, 12Circuits, Vertical(180°), SMT, 0.025μm,
Iteration new product: FBB05001-F12S1013W5MH23
Product Number：
FBB05001-F12S1013W5M
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
 Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
 Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Natural

Electrical

Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC

Mechanical

Mounting Style
SMT
Durability (Mating Cycles Max.)
30

Material

Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0

Packaging

Packaging
Reel

Data Download

Product Drawings
3D Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
