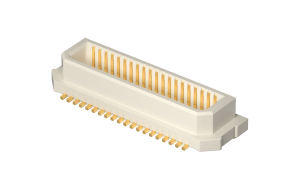

FBB05017-M40S1013NAMH24 Board to Board Connector, 0.5mm, Male, 40Circuits, Vertical(180°), SMT, With peg, H2.4,

FBB05017-M40S1013NAMH24

Download page

Board to Board Connector, 0.5mm, Male, 40Circuits, Vertical(180°), SMT, With peg, H2.4,

Product Number：

FBB05017-M40S1013NAMH24

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.5mm

Row Option

Dual row

Number of Positions

40Circuits

Height(mm)

H2.4

Peg

With peg

Orientation

Vertical(180°)

Colour

Natural

Electrical

Current(Max)

0.5A

Voltage(Max)

60V

Contact Resistance

80 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

150V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBB05017-F40S1013NAMH23

Board to Board Connector, 0.5mm, Female, 40Circuits, Vertical(180°), SMT, With peg, H2.35,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
