Where you are： TXGA → Products → Board to Board Connector → FBB063501-F → FBB063501-F20S7103NAMH80

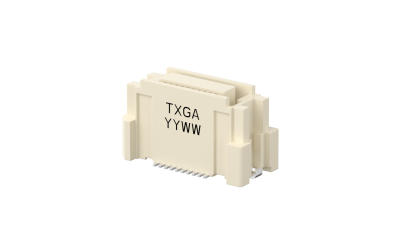

FBB063501-F20S7103NAMH80
Download page
Board to Board Connector, 0.635mm, Female, 20Circuits, Vertical(180°), SMT, H8
Product Number：
FBB063501-F20S7103NAMH80
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.635mm
Row Option
Dual row
Number of Positions
20Circuits
Height(mm)
H8
Peg
With peg
Orientation
Vertical(180°)
Colour
Natural
 Electrical
Current(Max)
0.5A
Voltage(Max)
100V
Contact Resistance
40 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.25μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FBB063501-F20S7103NAMH80
Board to Board Connector, 0.635mm, Female, 20Circuits, Vertical(180°), SMT, H8
MPQ： 450
MOQ： 900

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
