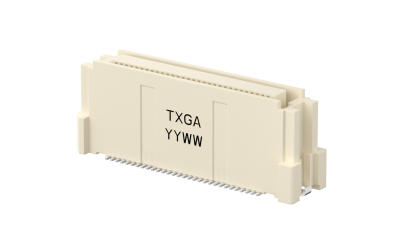

FBB063501-F60S7033NAMHA0 Board to Board Connector, 0.635mm, Female, 60Circuits, Vertical(180°), SMT, With peg, H10,

FBB063501-F60S7033NAMHA0

Download page

Board to Board Connector, 0.635mm, Female, 60Circuits, Vertical(180°), SMT, With peg, H10,

Product Number：

FBB063501-F60S7033NAMHA0

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Socket

Gender

Female

Pitch

0.635mm

Row Option

Dual row

Number of Positions

60Circuits

Height(mm)

H10

Peg

With peg

Orientation

Vertical(180°)

Colour

Natural

Electrical

Current(Max)

0.5A

Voltage(Max)

100V

Contact Resistance

40 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

250V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material

Material-Contact

Copper alloy

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.075μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FBB063501-M60S7033BKMH60

Board to Board Connector, 0.635mm, Male, 60Circuits, Vertical(180°), SMT, With peg, H6,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
