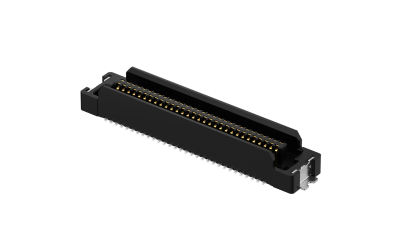

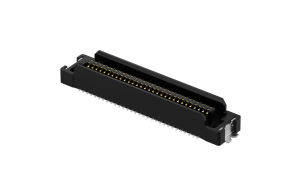

FBB08008-M20S3033K6MH45 Board to Board Connector, 0.8mm, Male, 20Circuits, Vertical(180°), SMT, With peg, H4.5

FBB08008-M20S3033K6MH45

Download page

After clicking download, select "Save as PDF" in the printer options.

Board to Board Connector, 0.8mm, Male, 20Circuits, Vertical(180°), SMT, With peg, H4.5

Product Number：

FBB08008-M20S3033K6MH45

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.8mm

Row Option

Dual row

Number of Positions

20Circuits

Height(mm)

H4.5

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material

Material-Contact

Phosphor bronze

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.075μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBB08008-F20S3003K6MH90

Board to Board Connector, 0.8mm, Female, 20Circuits, Vertical(180°), SMT, With peg, H9,
