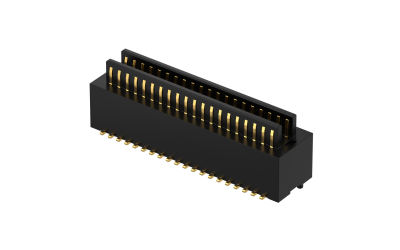

FBB08009-M100S1015K6MH20 Board to Board 0.8mm, Male, 100Circuits, 180° Vertical(SMT)(H2=2mm)

FBB08009-M100S1015K6MH20

Download page

After clicking download, select "Save as PDF" in the printer options.

Board to Board 0.8mm, Male, 100Circuits, 180° Vertical(SMT)(H2=2mm)

Product Number：

FBB08009-M100S1015K6MH20

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.8mm

Row Option

Dual row

Number of Positions

100Circuits

Height(mm)

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

50 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mechanical

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA9T

Flammability Rating

UL94 V-0

Packaging

Reel

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBB08009-F100S1015K6MH45

Board to Board 0.8mm, Female, 100Circuits, 180° Vertical(SMT)(H1=4.5mm)
