Where you are： TXGA Products Box Header/IDC FBH12710 FBH12710-D44B1003K6K
FBH12710-D44B1003K6K
Download page
After clicking download, select "Save as PDF" in the printer options.

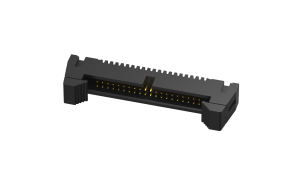

Ejector Box Header 1.27mm 90°Angle 44Circuits(DIP)
Product Number：
FBH12710-D44B1003K6K
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Ejector Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
44Circuits
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Ejector Box Header
Style
Socket
Pitch
1.27mm
Row Option
Dual row
Number of Positions
44Circuits
Orientation
Right angle(90°)
Colour
Black

Electrical

Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC

Mechanical

Mounting Style
Through hole

Material

Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0

Packaging

Packaging
Tray

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
