Where you are： TXGA Products Box Header/IDC FBH25419 FBH25419-D16S1001K6B02
FBH25419-D16S1001K6B02
Download page
After clicking download, select "Save as PDF" in the printer options.

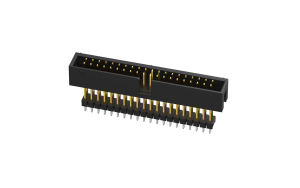

Box Header 2.54mm 180°Vertical 16Circuits(DIP)
Product Number：
FBH25419-D16S1001K6B02
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
Box Header
Style
Socket
Pitch
2.54mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
Through hole
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
