FCD0M8-PD040200-00
Download page

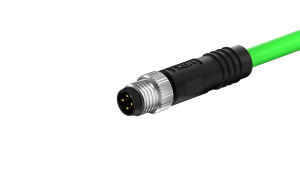

M8X1.0 D Coded 4pin, male straight single without shield end, cable length L=2m
Product Number:
FCD0M8-PD040200-00
Status:
Active
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
D coding
Shielded
Non-shielded
Cable Category
Male Straight to open
Number of Positions
4Circuits
Cable Length(M)
L=2M
Electrical
Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
50
Material
Material of Housing
Metal
Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{71.047836 | tradeCurrencySymbol}}
10+
{{65.156065 | tradeCurrencySymbol}}
50+
{{59.610868 | tradeCurrencySymbol}}
100+
{{54.75882 | tradeCurrencySymbol}}
500+
{{49.213623 | tradeCurrencySymbol}}
stock 100 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 5
MOQ: 1

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
