Where you are： TXGA Products M12 Circular Connector FCF2M12-SA05SSD0-00
FCF2M12-SA05SSD0-00
Download page
After clicking download, select "Save as PDF" in the printer options.

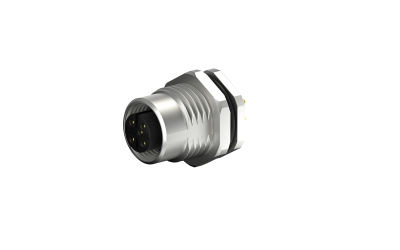

PG9, Front lock circular connector, Female, Socket, Acoding, 5Circuits, Vertical(180°), Through hole
Iteration new product: FM12ST1502-A05S103D00
Product Number：
FCF2M12-SA05SSD0-00
Status：
Discontinued
