Where you are： TXGA Products M12 Circular Connector FCF4M12-SA05SSD0-00

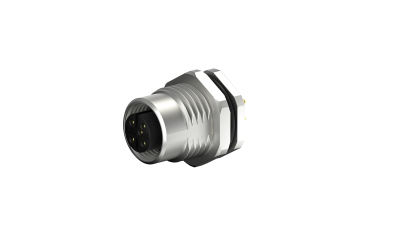

FCF4M12-SA05SSD0-00
Download page
After clicking download, select "Save as PDF" in the printer options.
M16X1.5, Front lock circular connector, Female, Socket, Acoding, 5Circuits, Vertical(180°), Through hole
Iteration new product: FM12ST1102-A05S103D00
Product Number：
FCF4M12-SA05SSD0-00
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Socket
Gender
Female
Coding
A coding
Shielded
Non-shielded
Number of Positions
5Circuits
Contacts Type
socket
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
5 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
1500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Panel Mount Feature
Front nut
Mounting Thread
M16x1.5
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
 Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
 Packaging
Packaging
Tray
