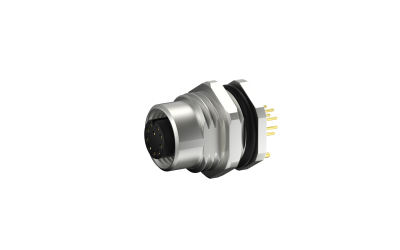

FCF4M12-SA10SSDS-00 M12 female socket, shield, through-hole welding, IP68, M16X1.5, front lock, A code, 10 cores

FCF4M12-SA10SSDS-00

Download page

M12 female socket, shield, through-hole welding, IP68, M16X1.5, front lock, A code, 10 cores

Iteration new product: FM12ST1101-A10S103D00

Product Number：

FCF4M12-SA10SSDS-00

Status：

Discontinued

Product Introduction Data Download Product Compliance

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Socket

Gender

Female

Coding

A coding

Shielded

Number of Positions

10Circuits

Contacts Type

socket

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

1.5A

Voltage(Max)

30V

Contact Resistance

5 mΩ Max

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Panel Mount Feature

Front nut

Mounting Thread

M16x1.5

Mounting Style

Through hole

Durability (Mating Cycles Max.)

100

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.075μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Material of Housing

Metal

Locking Material

Metal

Packaging

Tray

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Prompt

This product has been assigned a new number

To avoid misuse of the old number, this page no longer supports ordering/inquiry. Please visit the new product detail page to get the latest product information.

New product number FM12ST1101-A10S103D00
