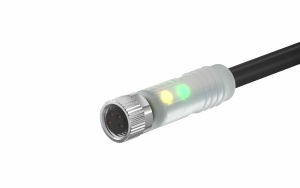

FCL0M8-PA040200-00 M8X1.0 A Coded 4pin female Straight single end, LED PNP, L=2M

FCL0M8-PA040200-00

Download page

M8X1.0 A Coded 4pin female Straight single end, LED PNP, L=2M

Iteration new product: FM8C010403-A04R0200000

Product Number：

FCL0M8-PA040200-00

Status：

Discontinued

Product Introduction Data Download Product Compliance

Category

Product Catalog

Connectors

Product System

M8 Circular Connector

Style

Cable assembly

Coding

A coding

Shielded

Non-shielded

Cable Category

Female Straight to open

Number of Positions

4Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

Voltage(Max)

60V

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Durability (Mating Cycles Max.)

Material

Material of Housing

Metal

Packaging

PE Bag

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Prompt

This product has been assigned a new number

To avoid misuse of the old number, this page no longer supports ordering/inquiry. Please visit the new product detail page to get the latest product information.

New product number FM8C010403-A04R0200000
