Where you are： TXGA Products M8 Circular Connector FCL0M8-PA040201-00
FCL0M8-PA040201-00
Download page
After clicking download, select "Save as PDF" in the printer options.

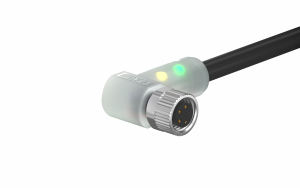

M8X1.0 A Coded 4pin female Right angle single end, LED PNP, L=2M
Iteration new product: FM8C020404-A04R0200000
Product Number：
FCL0M8-PA040201-00
Status：
Discontinued
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Bent to open
Number of Positions
4Circuits
Angle-Key
90°
Cable Length(M)
L=2M
 Electrical
Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
50
 Material
Material of Housing
Metal
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Bent to open
Number of Positions
4Circuits
Angle-Key
90°
Cable Length(M)
L=2M

Electrical

Current(Max)
4A
Voltage(Max)
60V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
50

Material

Material of Housing
Metal

Packaging

Packaging
PE Bag

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
