Where you are： TXGA Products M12 Circular Connector FCPM12-A0902000-000

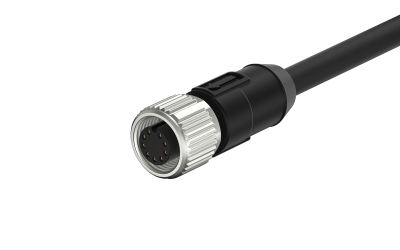

FCPM12-A0902000-000
Download page
M12X1.0 A Coded 9pin, female straight single end, cable length L=2m，unshielded
Product Number：
FCPM12-A0902000-000
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Straight to open
Number of Positions
9Circuits
Cable Length(M)
L=2M
 Electrical
Current(Max)
1.5A
Voltage(Max)
30V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
100
 Material
Material of Housing
Metal
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
M12 Circular Connector
Style
Cable assembly
Coding
A coding
Shielded
Non-shielded
Cable Category
Female Straight to open
Number of Positions
9Circuits
Cable Length(M)
L=2M

Electrical

Current(Max)
1.5A
Voltage(Max)
30V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Waterproof / Dustproof
Yes
Ingress Protection
IP68
Durability (Mating Cycles Max.)
100

Material

Material of Housing
Metal

Packaging

Packaging
PE Bag

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{61.338091 | tradeCurrencySymbol}}
10+
{{56.251518 | tradeCurrencySymbol}}
50+
{{51.464154 | tradeCurrencySymbol}}
100+
{{47.275212 | tradeCurrencySymbol}}
500+
{{42.487848 | tradeCurrencySymbol}}
stock 0 Estimated delivery date {{product.leadDate|timezoneDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait
MPQ： 5
MOQ： 1

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
Unit Price： {{ product.price|tradeCurrencySymbol}}
Total prices： {{ product.subTotal|tradeCurrencySymbol}}
Lead time： In stock {{product.leadDate|timezoneDate}}
