FCPMIN-F05060100-02
Download page

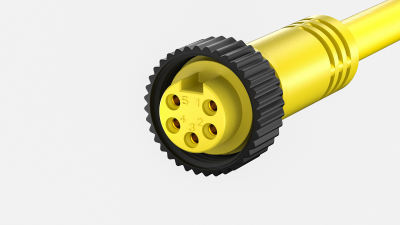

7/8'' Female CABLE STRAIGHT ENDED UNSHIELED, 5Circuits , PLUG , 0° , PVC, L=6M
Product Number:
FCPMIN-F05060100-02
Status:
Active
Category
Product Catalog
Connectors
Product System
7/8'' Connector
Style
Cable assembly
Shielded
Non-shielded
Cable Category
Female Straight to open
Number of Positions
5Circuits
Cable Length(M)
L=6M
Electrical
Current(Max)
8A
Voltage(Max)
600V
Insulation Resistance
100 MΩ Min
Withstanding Voltage
4000V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Durability (Mating Cycles Max.)
100
Material
Material of Housing
Plastic
Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
CE Certification Complies with EU CE safety certification
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
