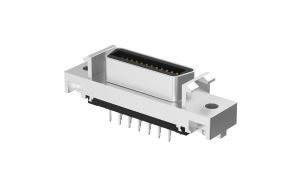

FCS2602-F0DS300K6KA SCSI Connector, 26Circuits, Female, Vertical(180°), Through hole, Gold flash

FCS2602-F0DS300K6KA

Download page

After clicking download, select "Save as PDF" in the printer options.

SCSI Connector, 26Circuits, Female, Vertical(180°), Through hole, Gold flash

Product Number：

FCS2602-F0DS300K6KA

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

SCSI Connector

Product Category

SCSI Connector

Style

Socket

Gender

Female

Type

Type A

Pitch

1.27mm

Number of Positions

26Circuits

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

30 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Phosphor bronze

Plating

Gold on contact, bright tin on tail

Plating Thickness

Gold flash

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FCS2610-M0WS303K6K

SCSI Connector 26Circuits Male Welding
