FCS3604-M0WS303K6K
Download page

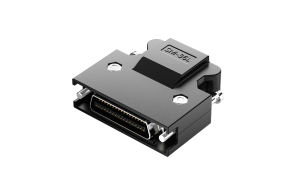

SCSI Connector 36Circuits Male Welding
Product Number:
FCS3604-M0WS303K6K
Status:
Active
Category
Product Catalog
Connectors
Product System
SCSI Connector
Product Category
SCSI Connector
Style
Plug
Gender
Male
Pitch
1.27mm
Number of Positions
36Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
40V
Contact Resistance
35 mΩ Max
Insulation Resistance
200 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
Soldering
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, bright tin on tail
Plating Thickness
0.075μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
Box
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price (including tax)
1+
{{22.007813 | tradeCurrencySymbol}}
10+
{{20.809203 | tradeCurrencySymbol}}
50+
{{18.411984 | tradeCurrencySymbol}}
100+
{{17.213374 | tradeCurrencySymbol}}
500+
{{14.816153 | tradeCurrencySymbol}}
stock 204 In stock

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 30
MOQ: 510

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ product.price|tradeCurrencySymbol}}
Total prices: {{ product.subTotal|tradeCurrencySymbol}}
Lead time: In stock {{product.leadDate|timezoneDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FCS3604-M0WS303K6K
SCSI Connector 36Circuits Male Welding
MPQ: 30
MOQ: 510

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
