Where you are： TXGA Products D-Sub Connector FDB0902 FDB0902-F0DB300K6LC
FDB0902-F0DB300K6LC
Download page
After clicking download, select "Save as PDF" in the printer options.

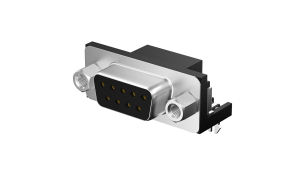

D-SUB 90°Angle Female 9Circuits
Product Number：
FDB0902-F0DB300K6LC
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Stamping pin D-SUB
Style
Socket
Gender
Female
Type
Type C
Row Option
Dual row
Number of Positions
9Circuits
Orientation
Right angle(90°)
Colour
Black
 Electrical
Current(Max)
3A
Voltage(Max)
250V
Contact Resistance
25 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
No
Mounting Style
Through hole
 Material
Material-Contact
Copper alloy
Plating
Gold on contact, bright tin on tail
Plating Thickness
Gold flash
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tube
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
