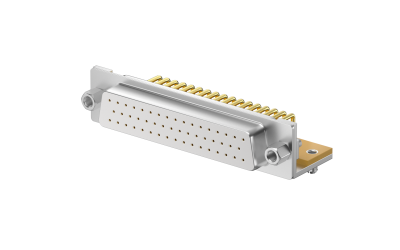

FDM5003-F0DB101WHKA

Download page

Machined pin D-SUB, 50Circuits, Female, Right angle(90°), Through hole, 0.025μm, White,

Product Number：

FDM5003-F0DB101WHKA

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

D-Sub Connector

Product Category

Machined pin D-SUB

Style

Socket

Gender

Female

Type

Type A

Row Option

3 rows

Number of Positions

50Circuits

Orientation

Right angle(90°)

Colour

White

Electrical

Current(Max)

5A

Voltage(Max)

500V

Contact Resistance

30 mΩ Max

Insulation Resistance

3000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

No

Mounting Style

Through hole

Material

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Packaging

Tray

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FDM5001-M0WS101WHKA

Machined pin D-SUB, 50Circuits, Male, Plug, Vertical(180°), Soldering, 0.025μm, White,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$8.118487

10+

$7.703926

50+

$6.805711

100+

$6.218416

500+

$5.458387

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 50

MOQ： 500

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
