Where you are： TXGA → Products → D-Sub Connector → FDP0801-M → FDP0801-M0WS115K6KB

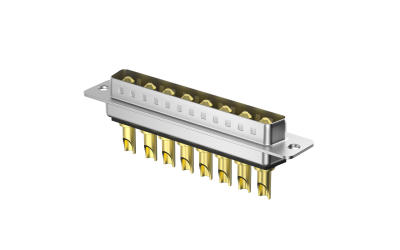

FDP0801-M0WS115K6KB
Download page
Mixed high current D-SUB 8Circuits, 8W8, Male, Vertical(180°), Soldering, 0.375μm, 20A,
Product Number：
FDP0801-M0WS115K6KB
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
D-Sub Connector
Product Category
Mixed high current D-SUB W-series
Style
Plug
Gender
Male
Type
Type B
Row Option
Single row
Number of Positions
8Circuits
Contact Layout
8W8
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
20A
Voltage(Max)
300V
Contact Resistance
5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Waterproof / Dustproof
No
Mounting Style
Soldering
 Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.375μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
 Packaging
Packaging
Tray
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FDP0801-M0WS115K6KB
Mixed high current D-SUB 8Circuits, 8W8, Male, Vertical(180°), Soldering, 0.375μm, 20A,
MPQ： 50
MOQ： 200

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
