Where you are： TXGA → Products → Pin Header/Female Header → FFH08001 → FFH08001-D66S1014K6M1

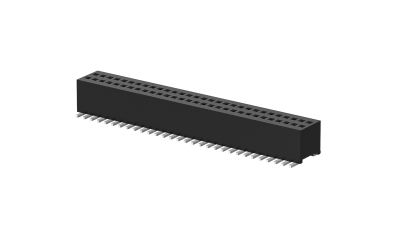

FFH08001-D66S1014K6M1
Download page
Female Header, 0.8mm, Dual row, 66Circuits, Vertical(180°), SMT, 0.025μm, PA6T, H3.3
Product Number：
FFH08001-D66S1014K6M1
Status：
Active
Product Introduction Data Download Product Compliance
Category
Product Catalog
Connectors
Product System
Pin Header/Female Header
Product Category
Female Header
Style
Socket
Pitch
0.8mm
Row Option
Dual row
Number of Positions
66Circuits
Height(mm)
H3.3
Peg
Without peg
Orientation
Vertical(180°)
Colour
Black
 Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
PA6T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel(With mylar)
{{item.nameEn}}
{{file.fileName}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FFH08001-D66S1014K6M1
Female Header, 0.8mm, Dual row, 66Circuits, Vertical(180°), SMT, 0.025μm, PA6T, H3.3
MPQ： 20
MOQ： 20

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
