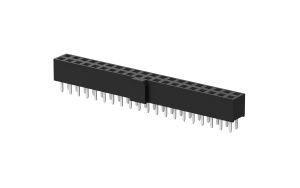

FFH20018-D34S1004K6K Female Header 2mm 180°Vertical Double row 34Circuits(DIP)

FFH20018-D34S1004K6K

Download page

After clicking download, select "Save as PDF" in the printer options.

Female Header 2mm 180°Vertical Double row 34Circuits(DIP)

Product Number：

FFH20018-D34S1004K6K

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Pitch

2mm

Row Option

Dual row

Number of Positions

34Circuits

Height(mm)

H4.3

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

Through hole

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Tray

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Receptacle

FBH20001-D34S1004K6K

Box Header 2.0mm 180°Vertical 34Circuits(DIP)

FBH20003-D34S1004K6M

Box Header 2mm 180°Vertical 34Circuits(SMT)
