FFH20034-D10S1014K6MA Female Header, 2mm, Dual row, 10Circuits, Vertical(180°), SMT, 0.025μm, PA6T, H7.2

FFH20034-D10S1014K6MA

Download page

Female Header, 2mm, Dual row, 10Circuits, Vertical(180°), SMT, 0.025μm, PA6T, H7.2

Product Number：

FFH20034-D10S1014K6MA

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Pin Header/Female Header

Product Category

Female Header

Style

Socket

Type

Type A

Pitch

2mm

Row Option

Dual row

Number of Positions

10Circuits

Peg

With peg

Height(mm)

H7.2

Orientation

Vertical(180°)

Colour

Black

Electrical

Current(Max)

Voltage(Max)

250V

Contact Resistance

20 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mechanical

Mounting Style

SMT

Material

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PA6T

Flammability Rating

UL94 V-0

Packaging

Reel

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FPH20048-D10S1014140702B

Pin Header, 2mm, Dual row, 10Circuits, Vertical(180°), Through hole, 0.025μm, PA6T

FPH20072-D10S1014110701M

Pin Header, 2mm, Dual row, 10Circuits, Vertical(180°), SMT, 0.025μm, PA6T

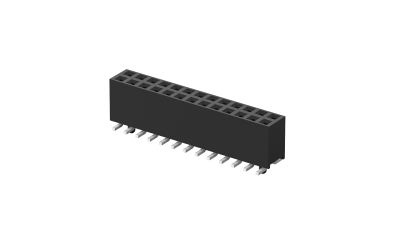

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
