FGM32001-01SI2200
Download page

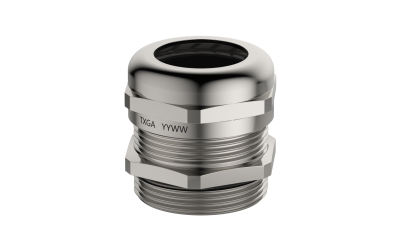

Cable gland, M32, Copper alloy, Nickel plated, IP68, ∅15-22mm
Product Number:
FGM32001-01SI2200
Status:
Active
Category
Product Catalog
Connectors
Product System
Heavy-duty Connector (Rectangle)
Product Category
Cable gland
Thread Spec
M32
Diameter (mm)
∅22
Colour
Silver
Electrical
Operating Temperature Range
-40ºC~+105ºC
Mechanical
Waterproof / Dustproof
Yes
Ingress Protection
IP68
Material
Plating
Nickel plated
Flammability Rating
UL94 V-0
Material Type
Copper
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Quantity
Unit Price
1+
$4.129027
10+
$3.928426
50+
$3.326625
100+
$3.042441
500+
$2.674673
stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ: 1
MOQ: 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price: {{ isCn?'¥':'$'}}{{ isCn?product.price:product.usdPrice}}
Total prices: {{ isCn?'¥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}
Lead time: In stock {{product.leadDate}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FGM32001-01SI2200
Cable gland, M32, Copper alloy, Nickel plated, IP68, ∅15-22mm
MPQ: 1
MOQ: 10

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
