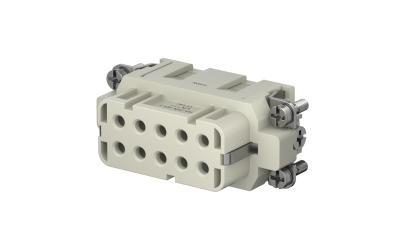

FHA00006-F0100GYR0 Heavy-duty connector, HA insert, Female, 10 Circuits+PE, 16A

FHA00006-F0100GYR0

Download page

After clicking download, select "Save as PDF" in the printer options.

Heavy-duty connector, HA insert, Female, 10 Circuits+PE, 16A

Product Number：

FHA00006-F0100GYR0

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

Style

Housing

Gender

Female

Row Option

Dual row

Number of Positions

10Circuits

Colour

Gray

Applicable wires (AWG Max.)

12AWG

Applicable wires (mm² Max.)

4mm²

Electrical

Current(Max)

16A

Voltage(Max)

250V

Contact Resistance

1 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+125ºC

Rated impulse voltage

4KV

Mechanical

Durability (Mating Cycles Max.)

500

Material

Plating

Material-Resin

Flammability Rating

UL94 V-0

Packaging

PE Bag

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Terminal

FTH006-0160F4B0

Crimp contact, 16A, Wire range 0.5mm²(20 AWG), Female, Silver plated

Plug

FHA00005-M0100GYR0

Heavy-duty connector, HA insert, Male, 10 Circuits+PE, 16A

Assembly shell

FH10AB01-B0000GY0

Heavy-duty connector, H10A Base shell, Single-latch, Bottom cable entry, Al-alloy, Gray, IP65

FH10AB02-SM200GY0

Heavy-duty connector, H10A Base shell, Single-latch, Side cable entry, M20, Al-alloy, Gray, IP65
