Where you are： TXGA Products Wire to Board/Wire Connector FHG20009 FHG20009-S14M2W1B

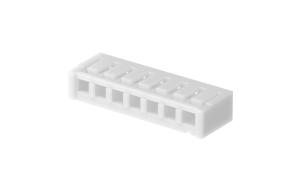

FHG20009-S14M2W1B
Download page
After clicking download, select "Save as PDF" in the printer options.
Wire to board housing 2mm 180°Vertical 14Circuits(SAN)
Product Number：
FHG20009-S14M2W1B
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
2mm
Row Option
Single row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
White
 Electrical
Current(Max)
2A
Voltage(Max)
250V
Operating Temperature Range
-25ºC~+85ºC
 Material
Material-Resin
PA66
Flammability Rating
UL94 V-0
 Packaging
Packaging
PE Bag
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Wire to Board/Wire Connector
Style
Housing
Gender
Male
Pitch
2mm
Row Option
Single row
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
White

Electrical

Current(Max)
2A
Voltage(Max)
250V
Operating Temperature Range
-25ºC~+85ºC

Material

Material-Resin
PA66
Flammability Rating
UL94 V-0

Packaging

Packaging
PE Bag

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Phone Email
{{maskPhone(inquiryForm.phone)}}
{{maskEmail(inquiryForm.email)}}
The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
FHG20009-S14M2W1B
Wire to board housing 2mm 180°Vertical 14Circuits(SAN)
MPQ： 1000
MOQ： 1000

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ
