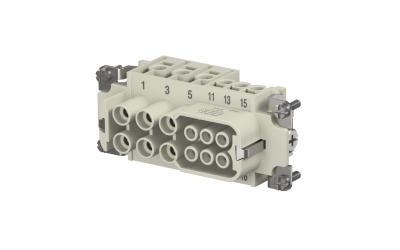

FHWK0002-F0124GYE0 Heavy-duty connector, HWK insert, Female, 6+6 Circuits+PE, 40A/16A, Screw locking

FHWK0002-F0124GYE0

Download page

After clicking download, select "Save as PDF" in the printer options.

Heavy-duty connector, HWK insert, Female, 6+6 Circuits+PE, 40A/16A, Screw locking

Product Number：

FHWK0002-F0124GYE0

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

Heavy-duty Connector (Rectangle)

Product Category

Heavy-duty connector

Product series

Style

Plug

Gender

Female

Row Option

Dual row

Number of Positions

12Circuits

Colour

Gray

Applicable wires (AWG Max.)

8AWG

Applicable wires (mm² Max.)

10mm²

Electrical

Current(Max)

40A

Voltage(Max)

690V

Contact Resistance

0.3 mΩ Max

Insulation Resistance

10000 MΩ Min

Operating Temperature Range

-40ºC~+125ºC

Rated impulse voltage

8KV

Mechanical

Mounting Style

Screw locking

Durability (Mating Cycles Max.)

500

Material

Material-Contact

Copper alloy

Plating

Silver plated

Material-Resin

Flammability Rating

UL94 V-0

Packaging

PE Bag

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FHWK0001-M0124GYE0

Heavy-duty connector, HWK insert, Male, 6+6 Circuits+PE, 40A/16A, Screw locking

Assembly shell

FH16BB01-B0000GY0

Heavy-duty connector, H16B Base shell, Bottom cable entry, Al-alloy, Gray, IP65
