Where you are： TXGA Products Micro Match FID12707 FID12707-184R1M
FID12707-184R1M
Download page
After clicking download, select "Save as PDF" in the printer options.

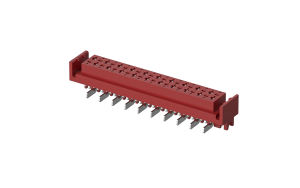

Micro match 1.27mm 180°Vertical 18Circuits(SMT)
Product Number：
FID12707-184R1M
Status：
Active
Product Introduction Data Download Product Compliance Compatible Parts
Category
Product Catalog
Connectors
Product System
Micro Match
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
Dual row
Number of Positions
18Circuits
Assemblies
Orientation
Vertical(180°)
Colour
Red
 Electrical
Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
 Mechanical
Mounting Style
SMT
 Material
Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0
 Packaging
Packaging
Reel
{{item.nameEn}}
{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Product Introduction

Category

Product Catalog
Connectors
Product System
Micro Match
Style
Socket
Gender
Female
Pitch
1.27mm
Row Option
Dual row
Number of Positions
18Circuits
Assemblies
Orientation
Vertical(180°)
Colour
Red

Electrical

Current(Max)
2A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC

Mechanical

Mounting Style
SMT

Material

Material-Contact
Brass
Plating
Matte tin plated
Material-Resin
PA9T
Flammability Rating
UL94 V-0

Packaging

Packaging
Reel

Data Download

Product Drawings

Product Compliance

REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Compatible Parts

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
