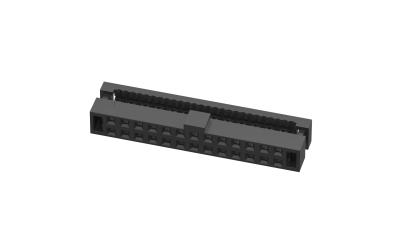

FID20007-265BKB
Download page
IDC 2mm, 2 Assemblies, 26Circuits, 3 contacts
Product Number:
FID20007-265BKB
Status:
Active
Category
Product Catalog
Connectors
Product System
Box Header/IDC
Product Category
IDC Connector
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
26Circuits
Assemblies
2 Assemblies
Orientation
Right angle(90°)
Colour
Black
Electrical
Current(Max)
1A
Voltage(Max)
250V
Contact Resistance
20 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
IDC
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, nickel on tail
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag
{{item.nameEn}}
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
