FM12C060802-A04C0200000

Download page

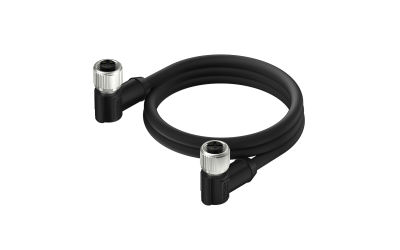

M12 cable connector, double female end bend, shielded, IP68, angle 45°, PUR, A-code, 4 cores, 2M

Product Number：

FM12C060802-A04C0200000

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

4Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

4A

Voltage(Max)

250V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM12C030801-A04E0200000

M12 cable connector, male straight end, shielded, IP68, PUR, A-code, 4 cores, 2M

FM12C030805-A04E0200000

M12 cable connector, male straight end, unshielded, IP68, PUR, A-code, 4 cores, 2M

FM12C080801-A04E0200000

M12 cable connector, double male straight end, shielding, IP68, PUR, A-code, 4 cores, 2M

FM12C080805-A04E0200000

M12 cable connector, double male straight end, unshielded, IP68, PUR, A-code, 4 cores, 2M

Receptacle

FM12SR1106-A04P103D00

M12 male socket, unshielded, through-hole welding, IP68, M16X1.5, rear lock, A-code, 4 cores

FM12SR1506-A04P103D00

M12 male socket, unshielded, through-hole welding, IP68, PG9, rear lock, A-code, 4 cores

FM12ST1105-A04P103D00

M12 male socket, shield, through-hole welding, M16X1.5, front lock, A-code, 4 cores

FM12ST1106-A04P103D00

M12 male socket, unshielded, through-hole welding, IP68, M16X1.5, front lock, A-code, 4 cores

FM12ST1506-A04P103D00

M12 male socket, unshielded, through-hole welding, IP68, PG9, front lock, A-code, 4 cores

FM12WR0814-A04P103050000

M12 male socket, unshielded, with wire L=500mm, IP68, M12X1.0, rear lock, A-code , 4 cores

FM12WR1106-A04P103050000

M12 male socket, unshielded, with wire L=500mm, IP68, M16X1.5, rear lock, A-code , 4 cores

FM12WR1506-A04P103050000

M12 male socket, unshielded, with wire L=500mm, IP68, PG9, rear lock, A-code , 4 cores

FM12WT1106-A04P103050000

M12 male socket, unshielded, with wire L=500mm, IP68, M16X1.5, front lock, A-code , 4 cores

FM12WT1506-A04P103050000

M12 male socket, unshielded, with wire L=500mm, IP68, PG9, front lock, A-code , 4 cores

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$12.241704

10+

$11.216537

50+

$10.311977

100+

$9.467722

500+

$8.502858
