FM12C080805-A06E0200000

Download page

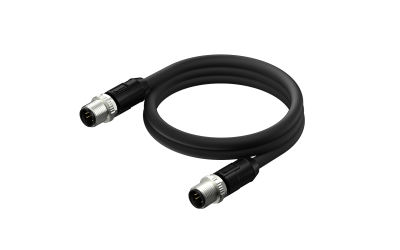

M12 cable connector, double male straight end, unshielded, IP68, PUR, A-code, 6 cores, 2M

Product Number：

FM12C080805-A06E0200000

Status：

Active

Data Download Product Introduction Product Compliance Compatible Parts

{{item.nameEn}}

{{file.fileName}}

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

A coding

Number of Positions

6Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

2A

Voltage(Max)

30V

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements

Plug

FM12C010801-A06E0200000

M12 cable connector, female straight end, shielded, IP68, PUR, A-code, 6 cores, 2M

FM12C010805-A06E0200000

M12 cable connector, female straight end, unshielded, IP68, PUR, A-code, 6 cores, 2M

FM12C020802-A06C0200000

M12 cable connector, female end bend, shielded, IP68, angle 45°, PUR, A-code, 6 cores, 2M

FM12C050801-A06E0200000

M12 cable connector, double female straight end, shielding, IP68, PUR, A-code, 6 cores, 2M

FM12C050805-A06E0200000

M12 cable connector, double female straight end, unshielded, IP68, PUR, A-code, 6 cores, 2M

FM12C060802-A06C0200000

M12 cable connector, double female end bend, shielded, IP68, angle 45°, PUR, A-code, 6 cores, 2M

Receptacle

FM12SR1102-A06S103D00

M12 female socket, unshielded, through-hole welding, IP68, M16X1.5, rear lock, A-code, 6 cores

FM12SR1502-A06S103D00

M12 female socket, unshielded, through-hole welding, IP68, PG9, rear lock, A-code, 6 cores

FM12ST1101-A06S103D00

M12 female socket, shield, through-hole welding, M16X1.5, front lock, A-code, 6 cores

FM12ST1102-A06S103D00

M12 female socket, unshielded, through-hole welding, IP68, M16X1.5, front lock, A code, 6 cores

FM12ST1502-A06S103D00

M12 female socket, unshielded, through-hole welding, IP68, PG9, front lock, A-code, 6 cores

FM12WR1102-A06S103050000

M12 female socket, unshielded, with wire L=500mm, IP68, M16X1.5, rear lock, A-code , 6 cores

FM12WR1502-A06S103050000

M12 female socket, unshielded, with wire L=500mm, IP68, PG9, rear lock, A-code , 6 cores

FM12WT1102-A06S103050000

M12 female socket, unshielded, with wire L=500mm, IP68, M16X1.5, front lock, A-code , 6 cores

FM12WT1502-A06S103050000

M12 female socket, unshielded, with wire L=500mm, IP68, PG9, front lock, A-code , 6 cores

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Quantity

Unit Price

1+

$8.678731

10+

$7.959031

50+

$7.281667

100+

$6.688973

500+

$6.011609

stock 0 Estimated delivery date {{product.leadDate}}

Immediate delivery is only the inventory quantity. If it exceeds the inventory quantity, you need to wait

MPQ： 1

MOQ： 2

When the purchase quantity is less than the inventory, you can purchase directly, and the minimum purchase quantity is 1

When the purchase quantity is greater than the inventory, you need to order; when ordering, the purchase quantity is: MOQ + N * MPQ

Unit Price： {{ isCn?'￥':'$'}}{{ isCn?product.price:product.usdPrice}}

Total prices： {{ isCn?'￥':'$'}}{{ isCn?product.subTotal:product.usdSubTotal}}

Lead time： In stock {{product.leadDate}}

The product is currently out of stock. You can leave a message on TXGA and customer service will call back according to your needs
