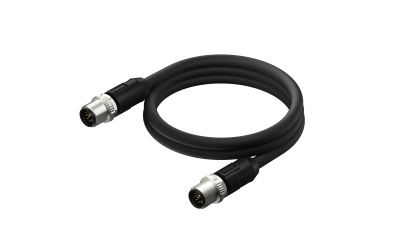

FM12C080805-A11E0200000 M12 cable connector, double male straight end, unshielded, IP68, PUR, A-code, 11 cores, 2M

FM12C080805-A11E0200000

Download page

After clicking download, select "Save as PDF" in the printer options.

M12 cable connector, double male straight end, unshielded, IP68, PUR, A-code, 11 cores, 2M

Product Number：

FM12C080805-A11E0200000

Status：

Active

Product Introduction Data Download Product Compliance Compatible Parts

Category

Product Catalog

Connectors

Product System

M12 Circular Connector

Style

Cable assembly

Coding

A coding

Shielded

Non-shielded

Cable Category

Male Straight to straight

Number of Positions

11Circuits

Cable Length(M)

L=2M

Electrical

Current(Max)

1.5A

Voltage(Max)

30V

Insulation Resistance

100 MΩ Min

Withstanding Voltage

800V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mechanical

Waterproof / Dustproof

Yes

Ingress Protection

IP68

Durability (Mating Cycles Max.)

100

Material

Material of Housing

Metal

Packaging

PE Bag

{{file.fileName}} {{ file.fileName && file.fileName.startsWith('ZH_')? 'Chinese Version' : 'English Version' }}

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
